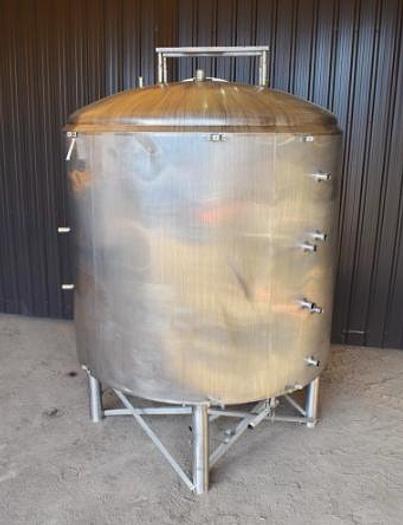

1000 Gallon - 304 SS Jacketed Tank
No longer available
1000 Gallon - 304 SS Jacketed Tank
$18,500 (USD)
Location:Chicago, IL
Description
LEAK CHECKED, no leaks

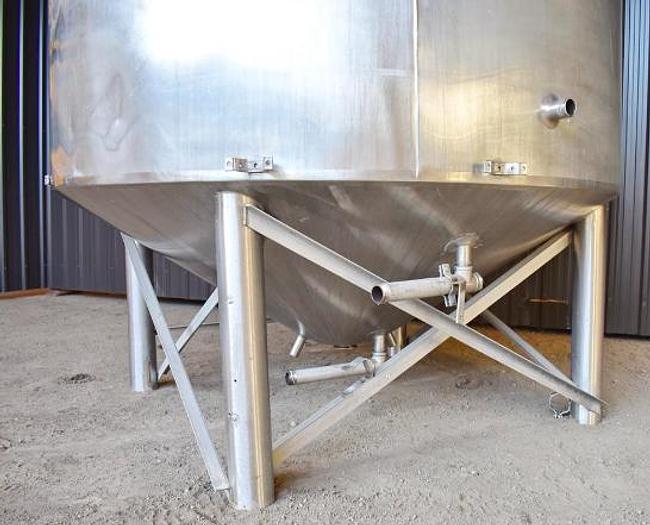

- Full Side And Cone Jacket

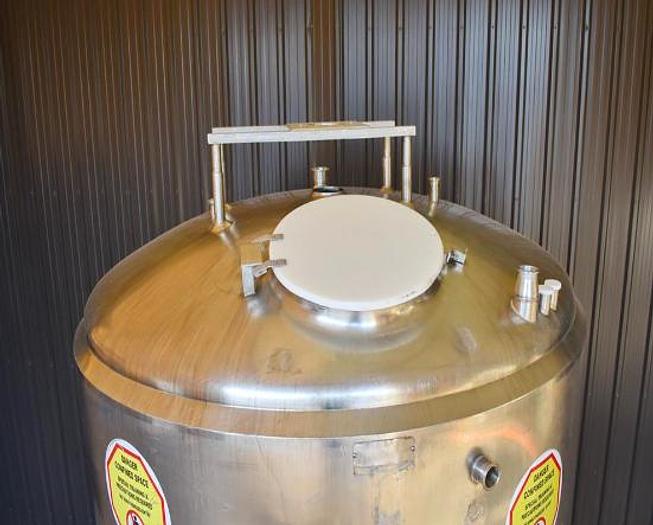

- Dome Top
- Tank Has A Top Stainless Steel Bridge For Mixer
- Overall Height With Bridge: 9'6''
- Tank Is On Four Stainless Steel Legs
Specifications

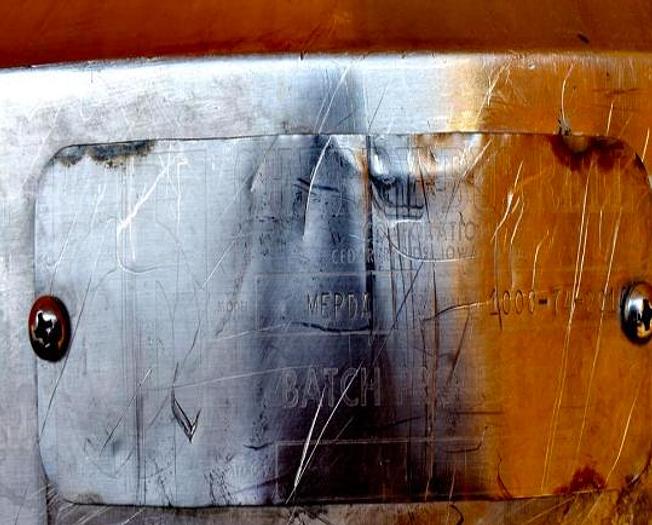

| Manufacturer | Cherry Burnell |
| Model | MEPDA-1000 |
| Condition | Used |
| Capacity: | 832 Gal / 3785 L |

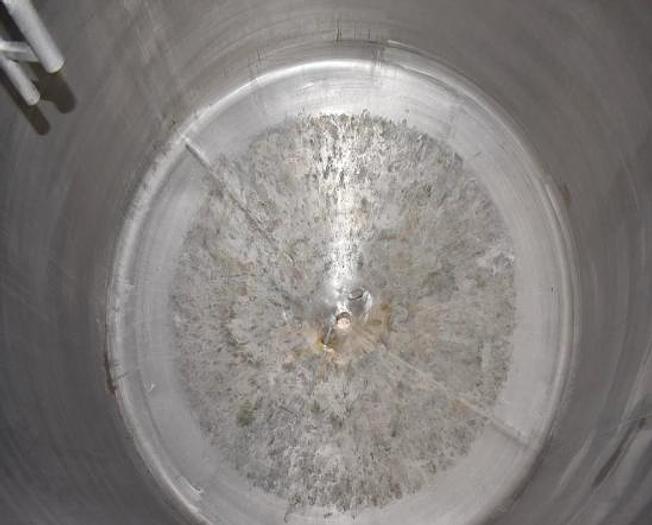

| Interior Dimensions: | 72'' Diameter X 60'' Straight Side, Plus 20'' Cone Bottom |
| Jacket Rating: | 20 PSI - Full Side And Cone Jacket |
| Top Inlets: | (1) 3'', (1) 2'', (3) 1.5'' Tri-clamp |
| Center Discharge: | 3" Triclamp |
| Manway Opening: | 18" with Polypropylene Lid |
