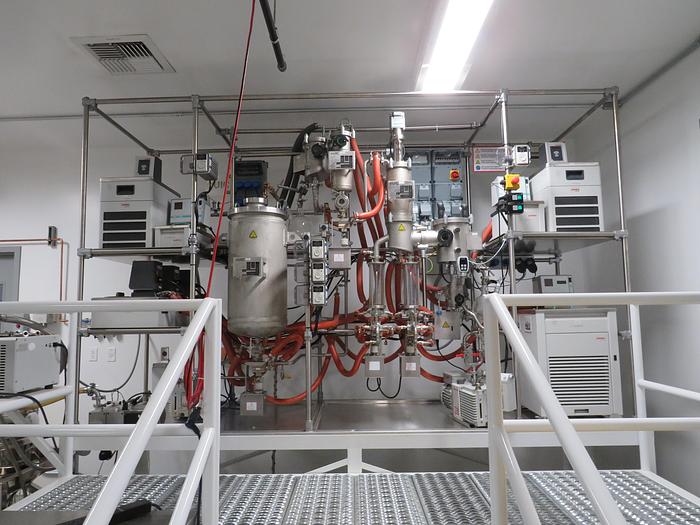

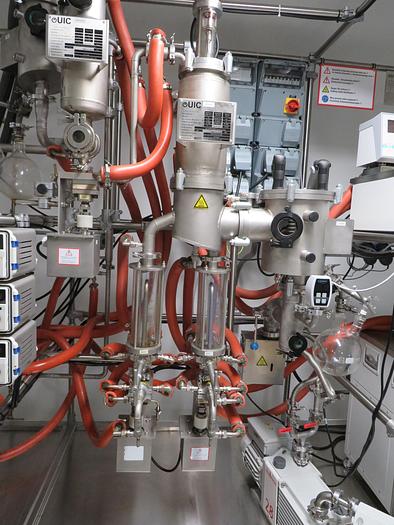

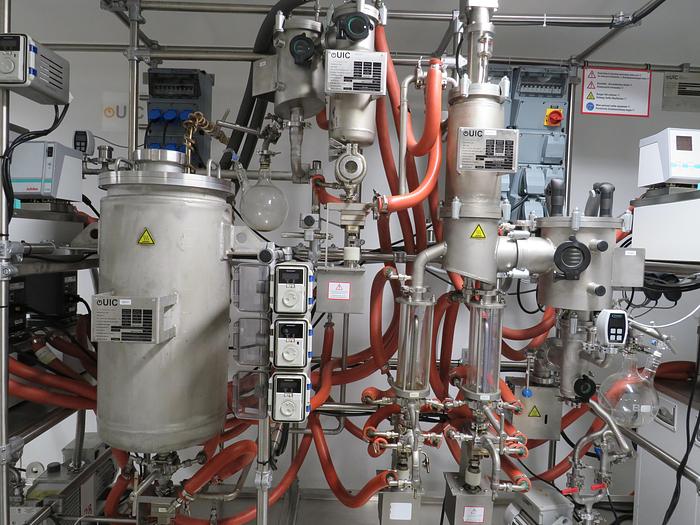

KD10 Wiped Film Short Path from UIC GmbH (ChemTech/Helderpad/UIC)

Gently used for about 3 months or so. Buyer can come inspect unit before purchase. Seller is selling for 50% off the original invoiced price. UL certified. All ancillary pieces come with the unit.

Email us or call for more information info@ruderequip.com or (425)-358-0425, ask for Emily

Specifications below:

SUPPORT FRAME SYSTEM

• 304ss Frame
• Dimensions: 167″L 32″W 83″H

FEED SYSTEM

• Two 25 Liter Hot Oil Heated Feed Tanks
• Two Gear Pump Feed Metering Systems
• Two Heated Evaporator Support Plates
• Hot Oil Traced Transfer Line

EVAPORATOR

• 316 Stainless Steel
• 0.100 Sq. Meter Surface Area
• Estimated Feed Rate 7 Liter/hour*

CIRCULATORS

• Feed Circulator 3kw; 0-250°c
• Two Evaporator Circulators 9kw; 20-300°c
• Residue Circulator 3kw; 0-250°c
• Two Condenser Circulators 2kw Heat/500w Cool; -50-200°c
• Cold Trap Circulator 1kw Heat/1000w Cool; -51-200°c

SAMPLE COLLECTION

• Hot Oil Heated Gear Pumps
• Two 1L Cold Trap Receiving Flasks

VACUUM SYSTEM

• Two Backing Rotary Vane Pumps 40 M3/hour
• Two Turbomolecular Pump 90 L/sec​

CONTROL SYSTEM

• UL 508 Rated Electrical Control Cabinet
