(2) C1D2 Modular Booths, 40' and 53' Length

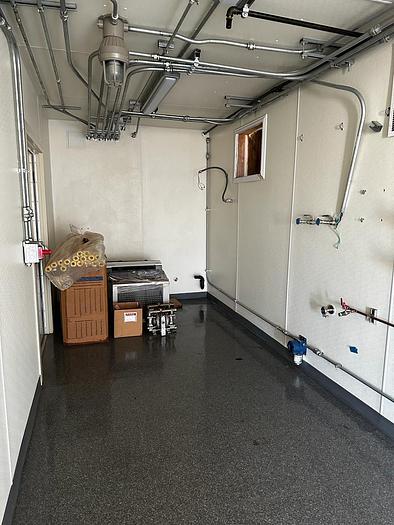

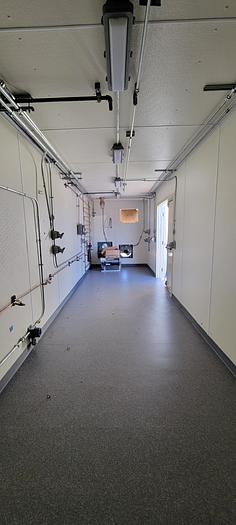

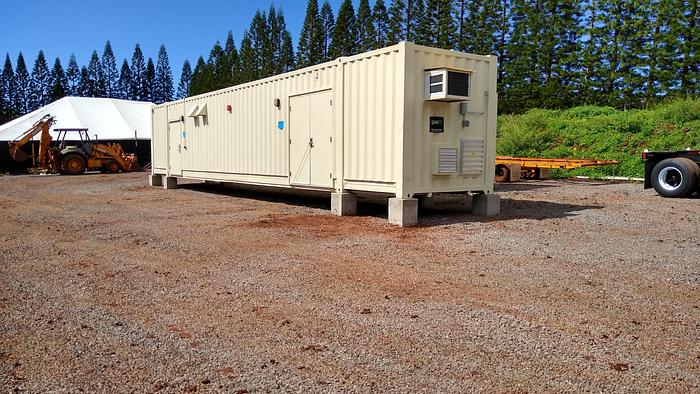

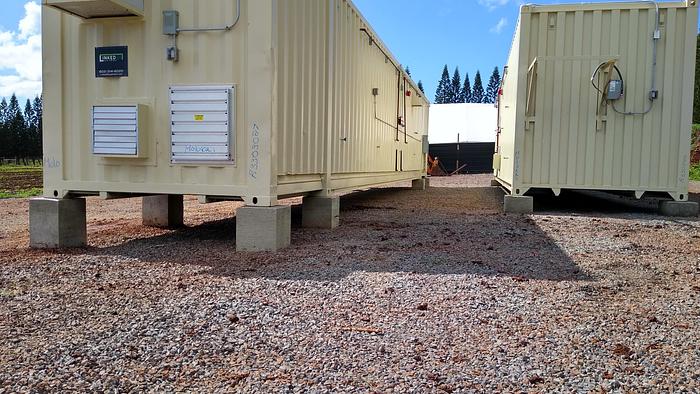

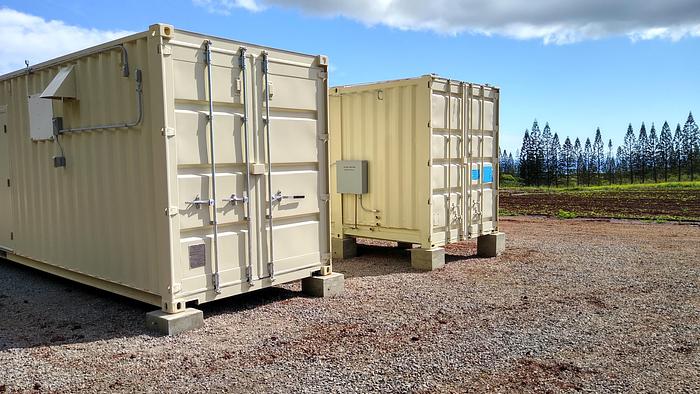

Two Standalone Mobile Container Extraction/Processing Buildings by Linked Equipment that are fully insulated capable of withstanding either the extreme heat of the Arizona desert, or the extreme cold of the Canadian winter. The First Building is a 53’ x 8’ C1D2 (Class One Division Two) Volatile Extraction/Processing Unit, the Second Building is a 40’ x 8’ C1D2 (Class One Division Two) Volatile Extraction/Processing Unit. These Units were purchased and designed to operate in tandem. The 40’ unit includes a freezer area to store cold ethanol for cryogenic extraction. Both Units are Multi-Purpose Extraction/ Processing Units perfect for Ethanol, Solventless, or CO2 Extraction, as well as Distillation, Crystalization, Edible Kitchen, Vacuum Ovens, Packaging, Prep, or any other production process.

Important Note: These units were Never Used, because the original buyer’s permitting was not approved. Although they have been sitting idle for a couple or years, they are like Brand New. The C1D2 Builder that has these units on consignment, can provide commissioning services prior to installation.

General Applies to Both Units:

• 100% Compliance to C1D2 Class One Division Two Standards.
• Stamped electrical, mechanical and fire drawings.
• Structure: Modified Conex steel shipping container with corrugated wall panels and
• reinforced structural members.
• Interior walls and ceiling: White Pebbled Surface Class A FRP.
• Insulation: Closed Cell Foam R-30 floor and ceiling and R-19 Walls.
• Flooring: Static-Free Vinyl.

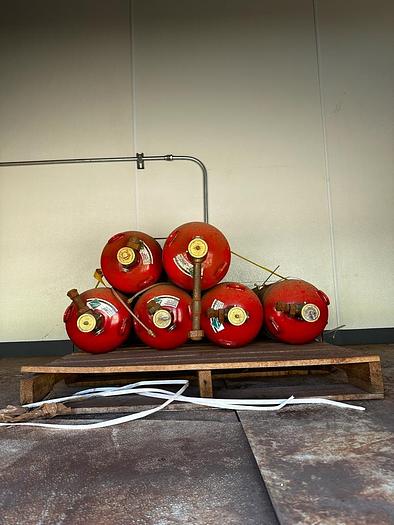

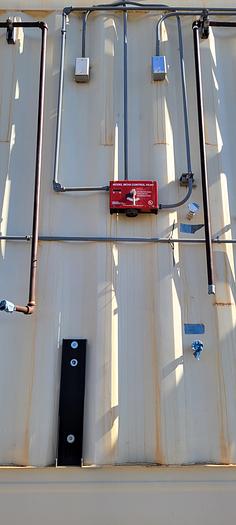

• Dry Chem Fire Suppression System.

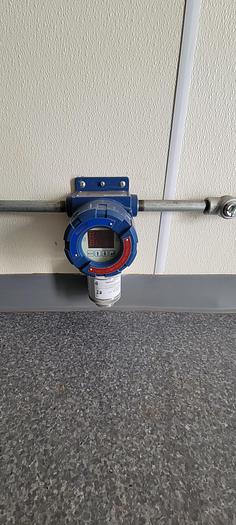

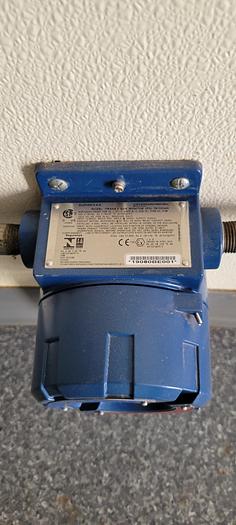

• Multi-Gas Sniffer Detection Unit.

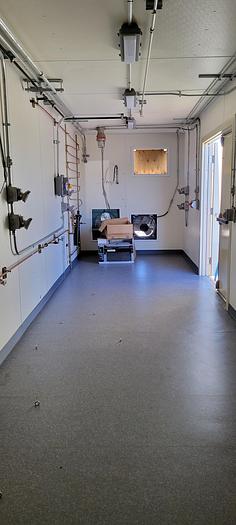

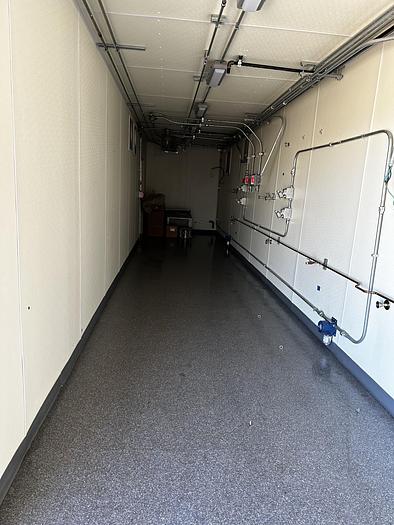

53’ x 8’ C1D2 Standalone Mobile Volatile Extraction/Processing Building Includes:

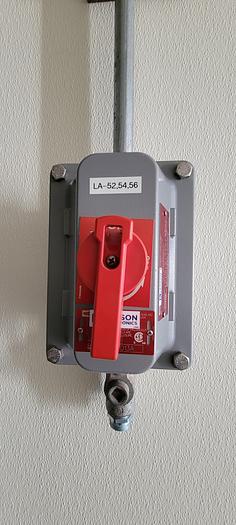

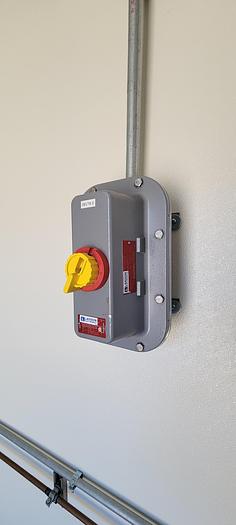

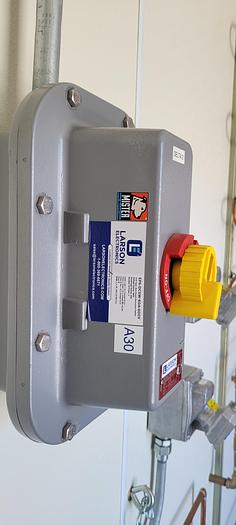

• (4) Explosion Proof Disconnect Switches for Hardwire Machines.

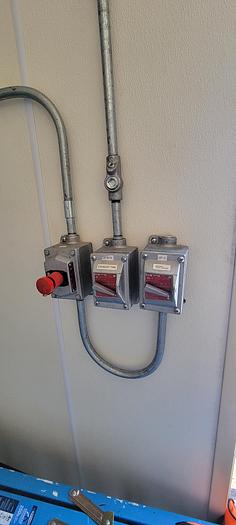

• (4) Explosion Proof Light/Fan Switches.
• (1) HVAC 36,000 BTW Safe Air C1D2.

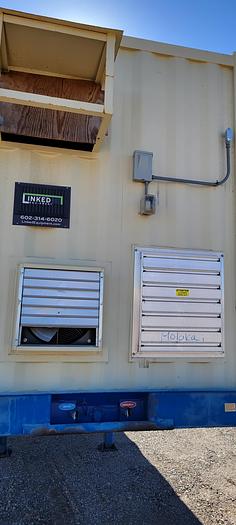

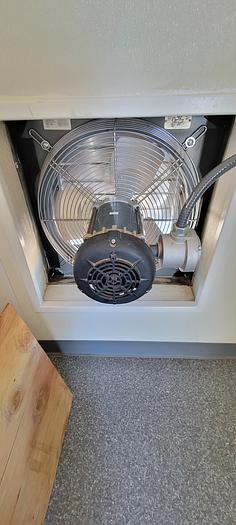

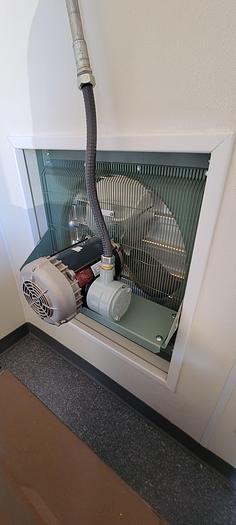

• (3) Exhaust Fans ( Explosion Proof 1260 CFM Ruffneck and 1320 CFM Camam)
• (1) Shunt System for C1D2 EXP.

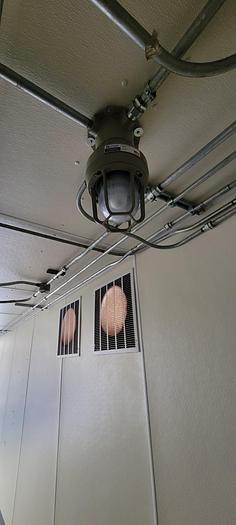

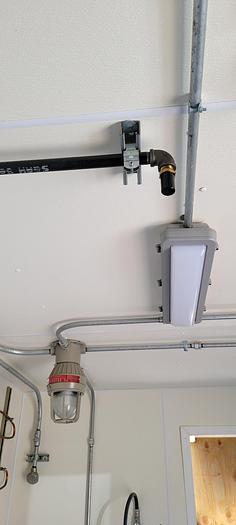

• (7) Explosion Proof Lights.
• (1) Exterior Porch Light.

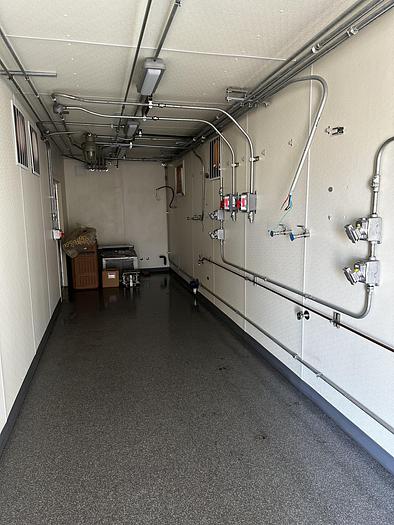

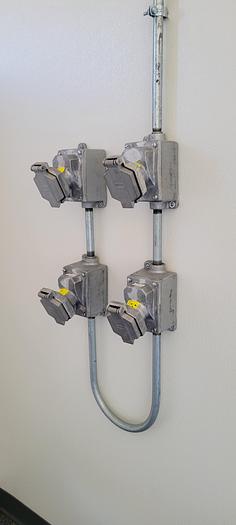

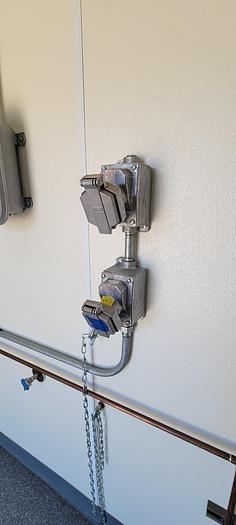

• (10) Explosion Proof Outlets.
• (2) Emergency Shut Down Buttons at Exits.
• (2) Horn/Strobe
• (1) Wall Mounted Eye Wash Station.
• (1) Stainless Steel Sink
• (1) Tankless Water Heater.

40’ x 8’ C1D2 Standalone Mobile Volatile Extraction/Processing Building Includes:

• Divided Freezer with Exterior Freezer Unit.
• (1) 4’ foot Freezer Door.

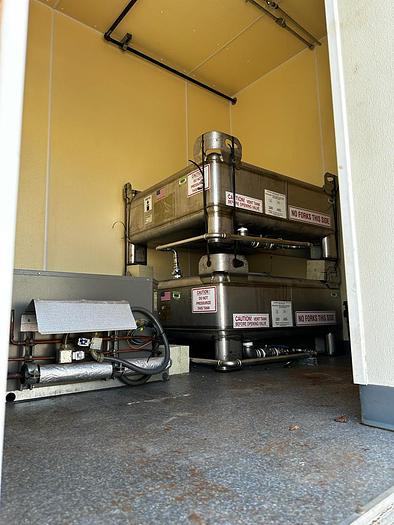

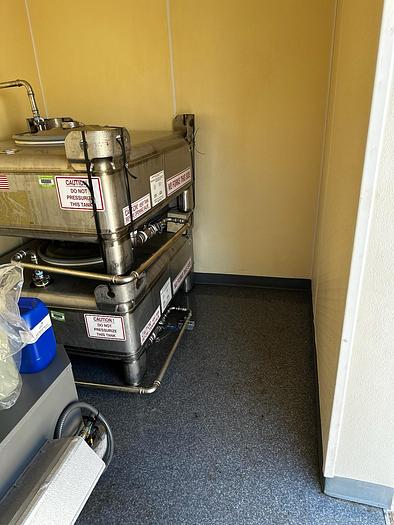

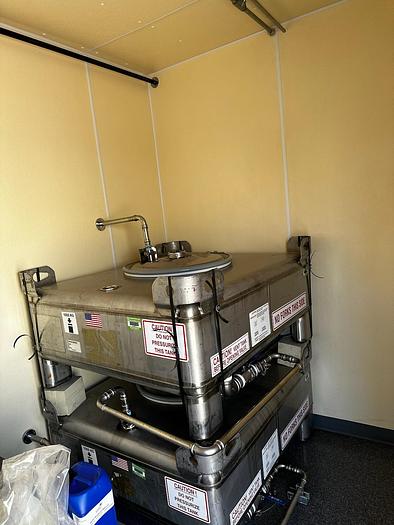

• (2) 120-gallon Food Grade Stainless Steel Tanks (for cold ethanol storage)
• (3) Explosion Proof Light/Fan Switches.
• (1) HVAC 20,000 BTW Safe Air C1D2.
• (1) Exhaust Fan (Explosion Proof 1260 CFM Ruffneck)
• (1) Opertional Fan (Explosion Proof 1320 CFM Camam)
• (1) Shunt Emergency Shutdown System.
• (4) Explosion Proof Lights.
• (2) Exterior Lights.
• (3) Explosion Proof Outlets.
• (1) Emergency Shut Down Button.
• (1) Horn/Strobe.
