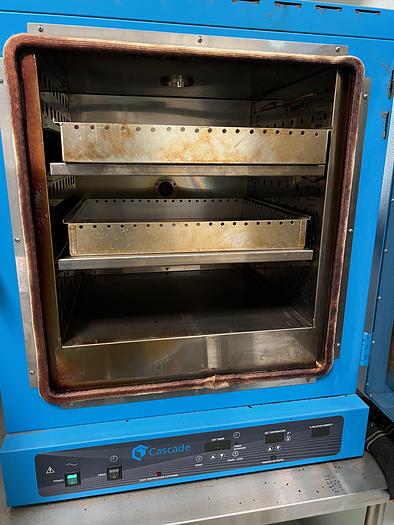

CDO-5 Drying and Decarb Oven by Cascade

CDO-5 by Cascade drying and decarb oven used, in operating condition

Specifications Below:

Model CDO-5

All shelves are removable and adjustable.

CAPACITY

Volume: 4.9 Cubic Ft. / 138 Cubic Liters

Interior (W x D x H):

21” x 19.44” x 20.75”

534mm x 494mm x 527mm

Exterior (W x D x H):

34.1” x 28.1” x 38.75”

866mm x 711mm x 984mm

Temperature

Temperature Range: 15°C (36°F) above room temp to 180°C (350°F)

Temp Stability: +/-0.4 °F

Temp Uniformity @ 40°C (100°F): +/- .5°C (1°F)

Temp Uniformity @ 115°C (240°F): +/- 1°C (1.5°F)

Temp Uniformity @ 150°C (305°F): +/- 2°C (3°F)

Heat up / Stabilization Time from 25°C (77°F) to 115°C (240°F): 40 min

Airflow Exchanges: 220 per hour @ 80°C (176°F)

Linear Shelf Space Airflow: 145 Feet Per Min (44 Liters Per Min)

Air Intake:Adjustable side vents.

Air Exhaust: Adjustable. Top 2.75: Dia

Exhaust Airflow @ 80°C (176°F): 18.5 Feet Per Min (523.9 Liters Per Min)
