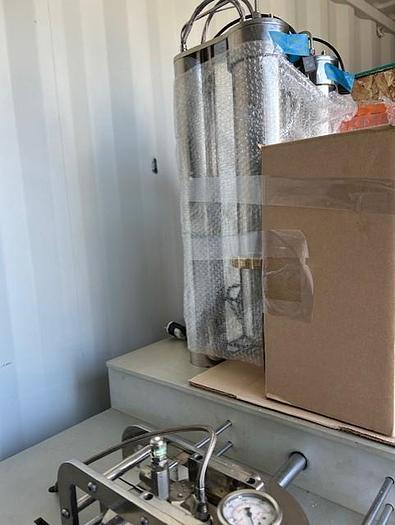

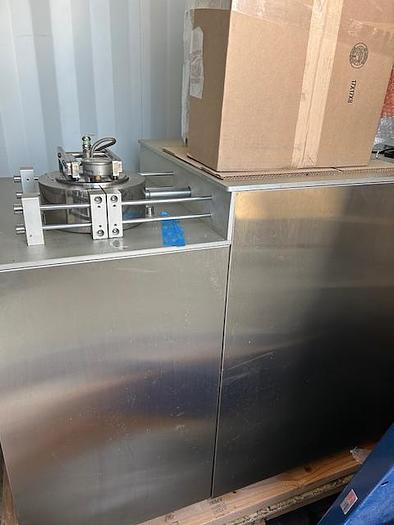

Vanguard Scientific CO2 Extractor MIDAS XII

Brand new, never used, Supercritical CO2 extractor Vanguard Scientific - MIDAS XII.

Still on original crate.

TECHNICAL SPECIFICATIONS

​​​​​PHYSICAL

1. MIDAS XII Dimensions: 53” x 30” x 75” (1590 square inches required)
2. Weight: 840 Lbs Display: 17” projected capacitance
3. Display: TFT / LCD touchscreen monitor

​

ELECTRICAL

1. Device Input: 15Amps Max; 208-240VAC 1-Phase Compressor
2. Input: 30Amps – 60Amps Max; 208 – 480VAC; 3P

​

EXTRACTION

1. Loading/ Unloading: Fully automatic – handsfree quick closure system
2. Loading Capacity: 8 Lbs. fine ground plant material
3. ASME Certified Pressure: 3000 psi
4. Max Programmable Pressure: 2700 psi
5. Operational Temp. Range: 90 -145°F

​

SEPARATION

1. Separation Vessels: Twin vessels in parallel or in phased sequence
2. Collection Capacity: 2 x 1 .2 L
3. Max Operating Pressure: 750 psi

​

PROCESSING POWER

1. Adjustable Processing Time: 45 – 90 min / Lb
2. Typical Flow Rate@ SCCO2: 14 oz/min

​

SAFETY

1. ASME Validated Pressure Vessel: American Society of Mechanical Engineering pressure rated
2. Redundant Pressure Safety: Three tiered system of mechanical and automated software safety features designed to protect the user, system and product. A unique solution for opening and closing the extraction vessel that dramatically reduces time and labor while increasing overall system safety.
