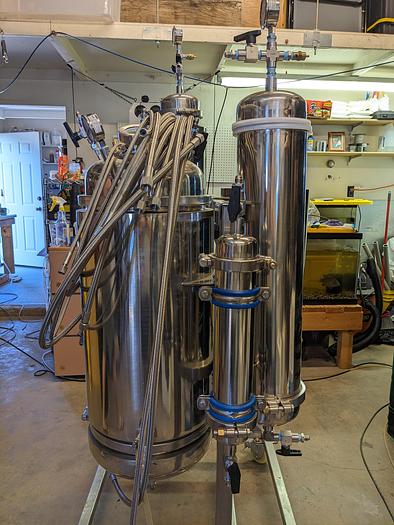

10LB Closed Loop Extractor by Extractor Solutions

10LB Closed Loop Extractor by Extractor Solutions

$21,000 (USD)

Location:Cortez, CO

orCall +1 425-358-0425

Description

Gently used, 10LB Closed Loop Extractor by Extractor Solutions. Only used a handful of times.

  • 2 hour run time
  • 40LBs Biomass per 8 hour shift


Comes with the following:

  • Heavy-Duty Stainless-Steel Rack

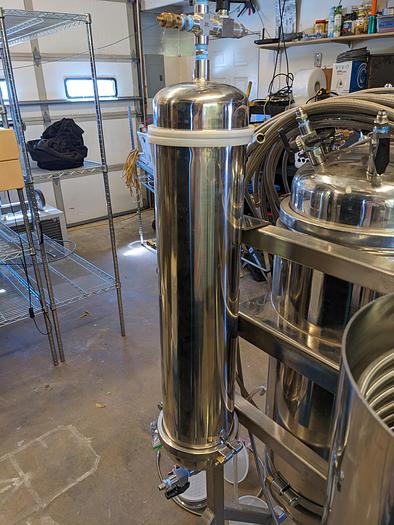

  • 6″ x 48″ Sleeved or Jacketed Dewaxing Material Column (10 lb)
  • 6″ Material Column Cap
  • 6″ Hemispherical Reducer
  • 3″ x 18″ Filtered Dryer Tri-Clamp Spool
  • 3″ Filtered Dryer End Caps (x2)

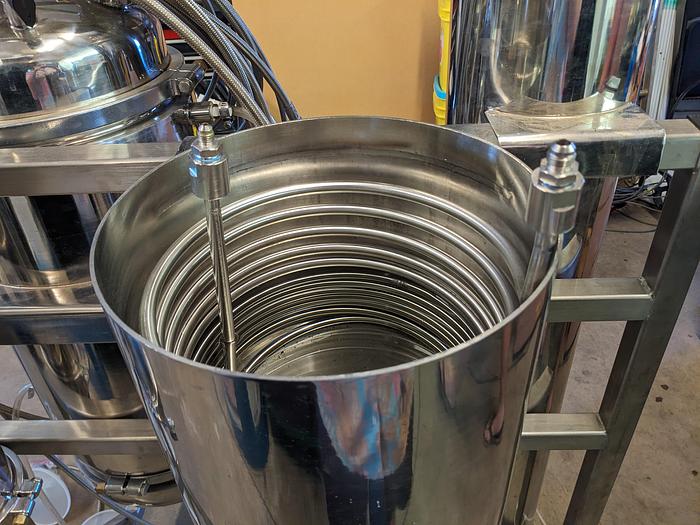

  • 3/8″ Connection Cooling Coil w/ Rack Mounted Chamber
  • 12″ Custom Assembled Extractor Lid
  • 5″ Top View Sightglass (x2)
  • 12″ x 12″ Jacketed Collection Base (x2)
  • 12″ x 4″ Hemispherical Platter (Sauce Server)
  • 12″ High Pressure Clamp (x3)
  • 6″ High Pressure Clamp (x2)
  • 3″ High Pressure Clamp (x2)
  • 5″ High Pressure Clamp (x2)
  • 12″ BUNA Gasket (x3)
  • 6″ BUNA Gasket/150 Mesh (x2)
  • 3″ BUNA Gasket/150 Mesh (x2)
  • 5″ BUNA Gasket (x2)
  • PTFE Braided Stainless Steel Solvent Hose (x8)


Engineer Certified 10LB Closed Loop Extractor Kit features

  • Color Remediation Chamber (CRC) for powdered adsorbents (1 micron sintered metal disc filter.)
  • Bi-Directional solvent flow prevents solvent channeling giving you the highest yield possible.
  • Equipped with a Sauce Server (12″ hemispherical platter with 3/8″ valve to remove extracts via pressure)
  • Jacketed 6″x48″ material column for use with dry ice to Dewax/Winterize extract (Coagulates and traps unwanted fats and lipids within the materials column filter.)
  • Jacketed collection base allows heat assistance without submerging the collection base in a heat bath.
  • Heavy duty welded stainless steel rack with casters comes equipped with hardware for active recovery (cooling coil and molecular sieve)
  • High pressure sight glasses allow you to monitor the extraction and recovery process
  • Includes all clamps, gaskets and 8 assorted Stainless Steel braided PTFE solvent hoses needed for operation
  • equipped with an emergency pressure relief valve that releases excess pressure beyond 123.2PSI


Specifications

ManufacturerExtractor Solutions
Model10lb
Year2022
ConditionUsed
