Turn-Key Ultrasonic Industrial Sonomechanics Processing Equipment

Brand new Ultrasonic turn-key system. Used only for 3 runs with vegetable oil to ensure mechanics worked properly, which was a total of less than 3 hours of use.

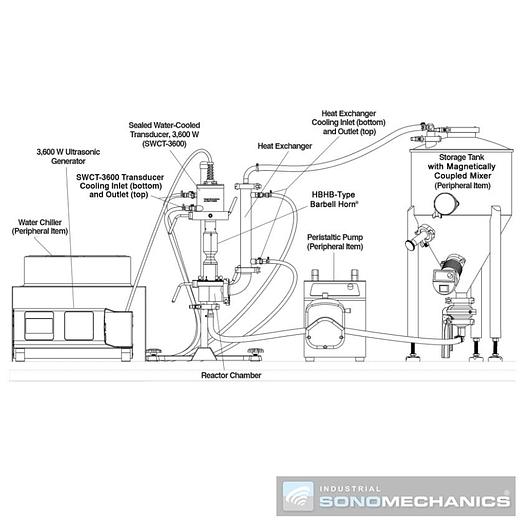

The package comes with the following items:

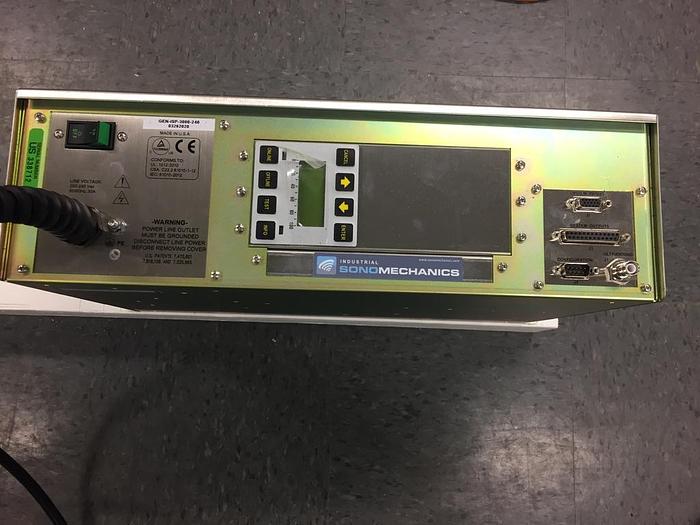

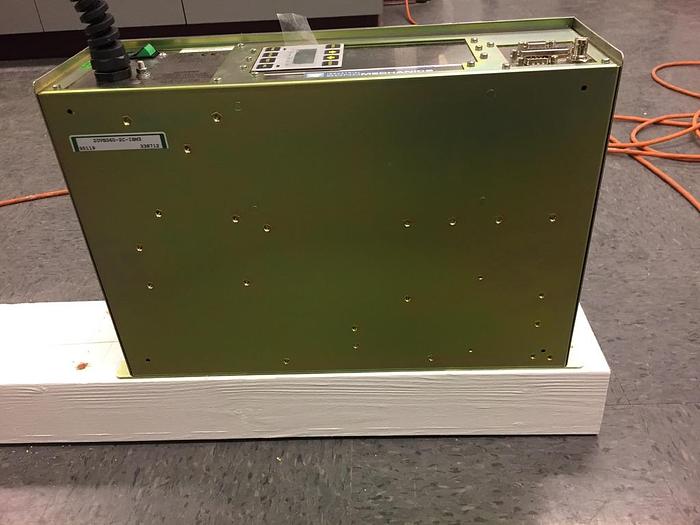

ISP-3000 Generator

1. 3,000 W ultrasonic generator with an automatic frequency correction processor and 20 - 100% amplitude controller
2. Wired remote ON/OFF switch
3. Ultrasound cable
4. Grounding cable
5. Manual

SWCT-3000

Water-cooled 20 kHz piezoelectric transducer

Transducer support arm with nut

Two quick disconnect to 3/8” hose ID adapters for transducer cooling liquid

HBH or HBHB

BH or HBHB-type ultrasonic Barbell Horn®, output tip diameter - 45 mm

Flow-Through Reactor Chamber

Flow-through reactor chamber with 1“ inlet and outlet sanitary flanged connections

Reactor chamber lid

1" sanitary to 1" hose ID adapter for main liquid line outlet

1" sanitary to 1" hose ID adapter for main liquid line inlet Two 1” sanitary clamps

Two gaskets for 1” sanitary fittings

Two O-rings for reactor chamber

Reactor chamber support arm with nut

Heat Exchanger

1.5" sanitary heat exchanger, 4 pipes, SS304

Two 1/2" hose barb to 1/2" female FPT cooling water adapters, SS304

1.5" sanitary 90-degree elbow pipe fitting, SS304

1.5" saniary to 3/4" hose barb 90-degree elbow adapter, SS3904

Two 1.5" saniary clamps, SS304

Two gaskets for 1.5" sanitary fittings

Support Stand

Heavy-duty support stand with clamp(s) for ISP-3000

Storage/Mixing Tank

1. 25 L Storage/mixing tank

2. 1/2" Ball valve

3. 1/2" Weldless bulkhead

4. 1/2" Silicone tubing with quick disconnect adapter 5. Adjustable mixing eductor arm

6. Sight glass

7. Clamp for mixing eductor arm

Recirculating Chiller

• Cooling capacity: 3150 W

• Reservoir volume: 15 L

• Maximum pumping lift: 12 M • Maximum flow: 13 L/min

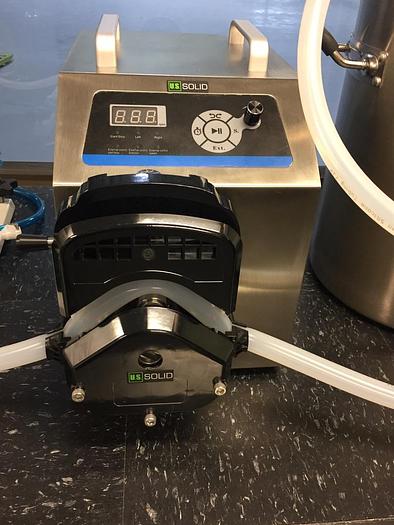

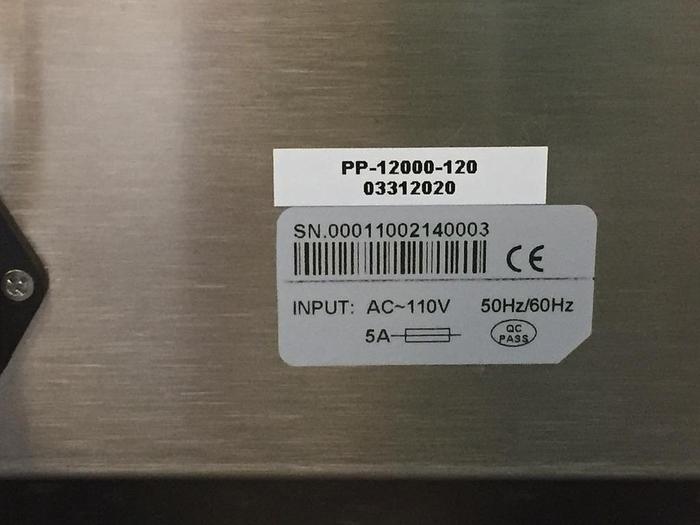

Industrial Peristaltic Pump

• Flow rate: 1.2 - 12,000 ml/min

• Reversible

• Motor speed range: 0.1 - 600 rpm; resolution: 0.01 rpm

• LED display

More info on the manufactures website: https://www.sonomechanics.com/3600_w_industrial-scale_processor/
