PX1 Hydrocarbon Extractor by Precision w/ GC5000 Gas Compressor and Thermo Chiller

Used Precision PX1 Hydrocarbon Extractor complete with GC5000 Gas Compressor and Thermo Fisher Scientific Chiller

SPECS: PX1

BATCH CYCLE TIME

30-45 minutes

CAPACITY

Up to 40 lbs per 8 hr Shift

DIMENSIONS (approx)

51″ L x 46″ W x 93″ H

WEIGHT

346 lb

SHIPPING WEIGHT

700 lb

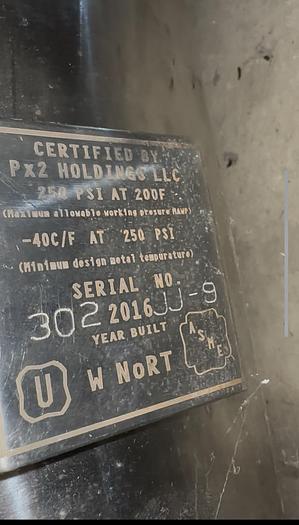

MAWP

250 PSIG

More specs include:

• LPG rated valve systems (3/8")
• 3/8" PTFE/SS feed hosing (UL-21 compliant)
• Viton/PTFE gaskets
• Inline dewaxing capability
• Vacuum jacket insulated solvent/dewax vessels
• Pre-plumbed for chillers and heaters1
• ASME stamped and rated vessels
• ASME certified clamps (6"+)
• ASME certified PRVs (pressure relief valve)

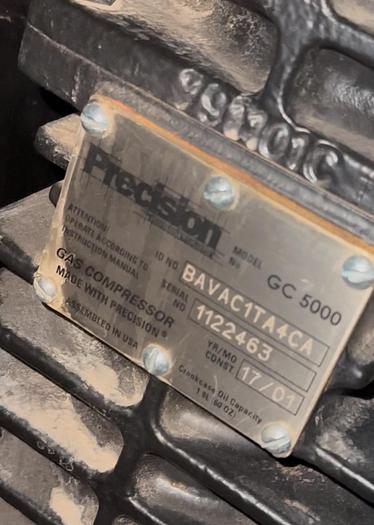

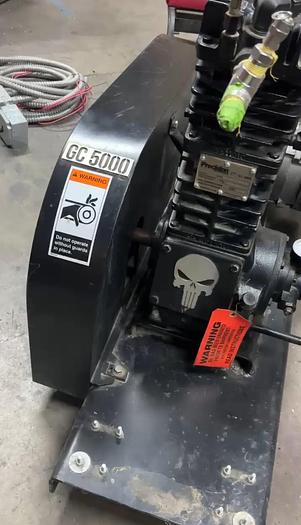

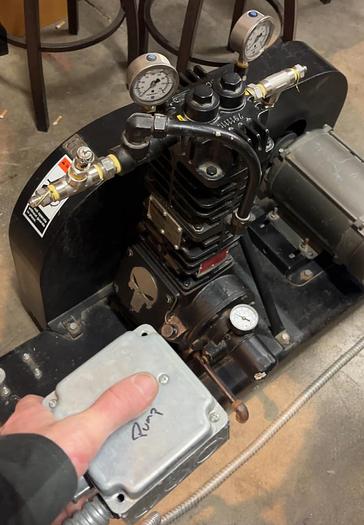

GC5000 GAS COMPRESSOR SPECS:

• Dimensions: Approximately 41" L x 33" W (depth not specified)
• Recovery speed: Up to 1-5 lb per minute
• Features a NEMA7 switch for easy installation
• Equipped with PTFE seals for leak-proof protection
• Explosion-proof when properly operated
• Designed for use with butane and propane extractors
• Oil-free piston compressor with PTFE seals

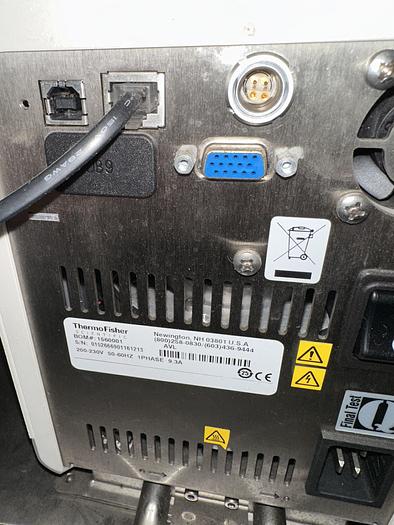

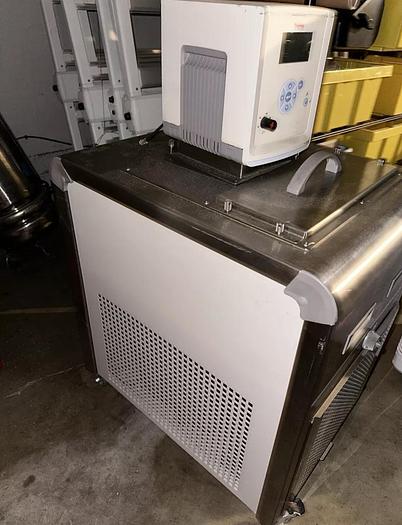

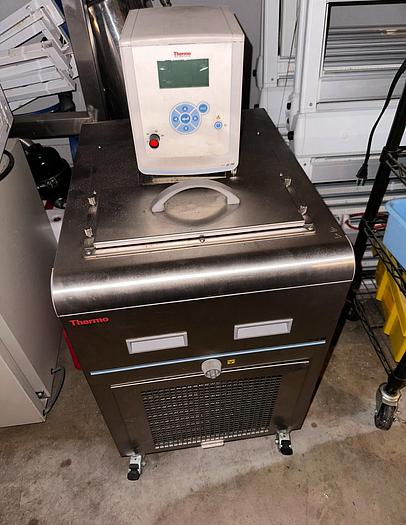

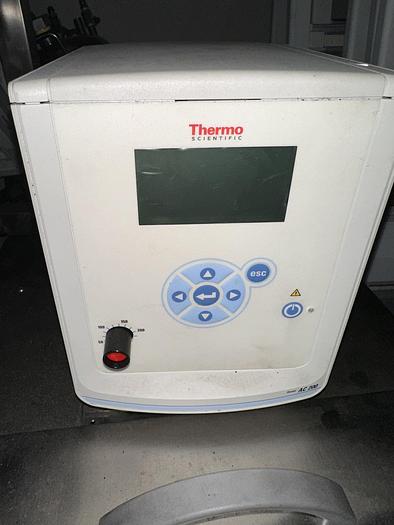

THERMO FISHER CHILLER SPECS:

200-230 V

50-60 Hz

Single Phase

9.3 A
