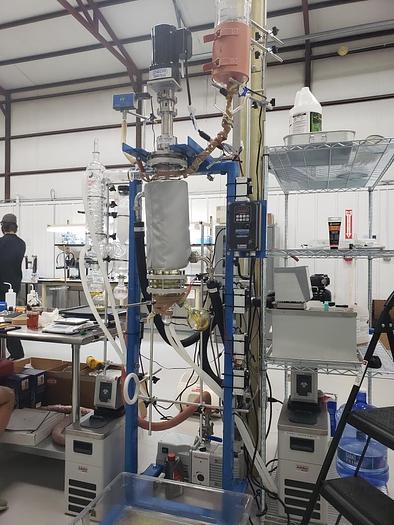

Capna Ethos 6 and Pope 4" Wiped Film Distillation Package *FIRESALE*

Capna Ethos 6 and POPE Wiped Film 4" Distillation Package - Full Turn Key with everything included to operate.

Buyer is responsible for shipping and crating costs. Shipping and crating quotes available upon request.

Call/text for faster responses 425-358-0425 -Ruder Equipment

ETHOS 6 SPECIFICATIONS:

Model Ethos 6.

304 Stainless Steel Construction.

Extraction Vessel Volume of 14 Gallons.

Collection Vessel Volume of 10 Gallons.

Can extract up to 14 pounds of plant material per hour.

3600g per 40 Minute extraction throughput.

36 Gallon Holding Capacity for Ethanol Solvent.

Creates wax-free extracts with 98.6% efficiency rate and a Emulsion Recovery Efficiency of 85%.

System Solvent is Ethanol Alcohol (CAS 64-17-5).

Power Requirements: 208-230 / 12 Amps.

Dimensions: 33.8" Long x 87.6" Wide x 40.5" High.

POPE SPECIFICATIONS:

• Feed rates from 0.5 to 2 liters/hr in glass material
• Wetted parts are certified borosilicate glass, 316L SS drive and virgin Teflon wipers

Footprint

70”W x 60”D x 87”H (177.8 cm x 152.4 cm x 221.0 cm)

Electrical

60Hz Installations: 52 Amps @ 120V/1ph, 14 Amps @ 240V/1ph

50Hz Installations: 61 Amps @ 240V/1ph

Feed Rate

0.5 to 2 liters/hr with glass body and condenser

Evaporator surface area

0.11m2 (1.15 ft2)

Evaporator diameter

4”

Ultimate vacuum (clean and dry)

0.008 to 0.02 Torr

Internal condenser circulator range

-20°C to +150°C

Immersion chiller operating temperature

-80 to -60°C
