USA Lab 50L Rotary Evaporator with Poly Science Chiller

USA Lab 50L Rotary Evaporator with Poly Science Chiller

Contact us for price

Location:Georgia

Description

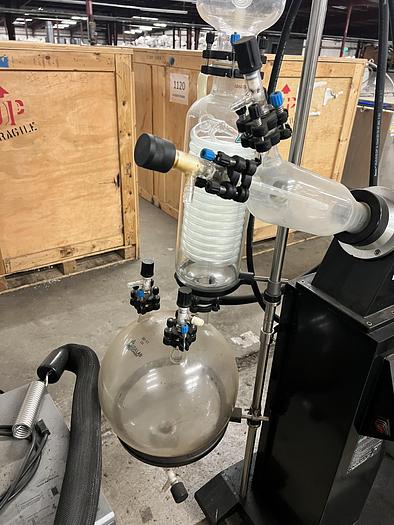

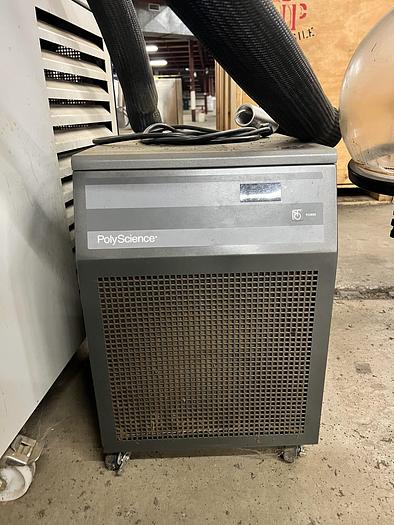

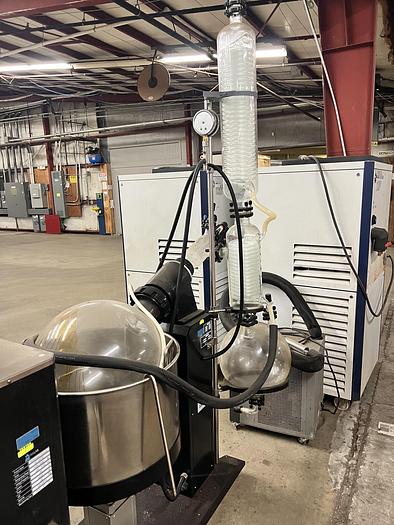

USA Lab 50L Rotary Evaporator (RE-1050) with Poly Science Chiller


The USA Lab RE-1050 is a large-scale rotary evaporator built for efficient and reliable solvent recovery in botanical and chemical processing labs. Its robust design supports high-volume throughput with precision temperature and vacuum control.

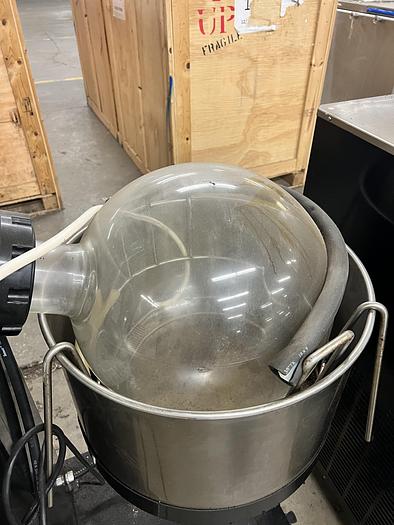

  • Evaporation Flask: 50L
  • Collection Flask: 20L
  • Rotary Speed: 20–120 RPM
  • Bath Temperature Range: Ambient to 180°C (356°F)
  • Temperature Accuracy: ±1°C
  • Motor Power: 250W
  • Heating Capacity: 22,000 BTU
  • Evaporation Rate: Up to 7L/hr (water), up to 15L/hr (alcohol)
  • Water Bath Volume: 77L
  • Power: 220–240V, 60Hz, 30A (L6-30P plug)
  • Dimensions: 52” L x 30” W x 84” H
  • Weight: ~400 lbs


Features include an electric lift, over-temp shutoff, dry-run protection, and ports for continuous feed/drain under vacuum. Ideal for labs requiring high-throughput solvent removal with precision and safety.

Specifications

ManufacturerUSA Labs
ConditionUsed
Stock Number00061
