Chemtech KDL6 Distillation System (UIC with Julabo Accessories)

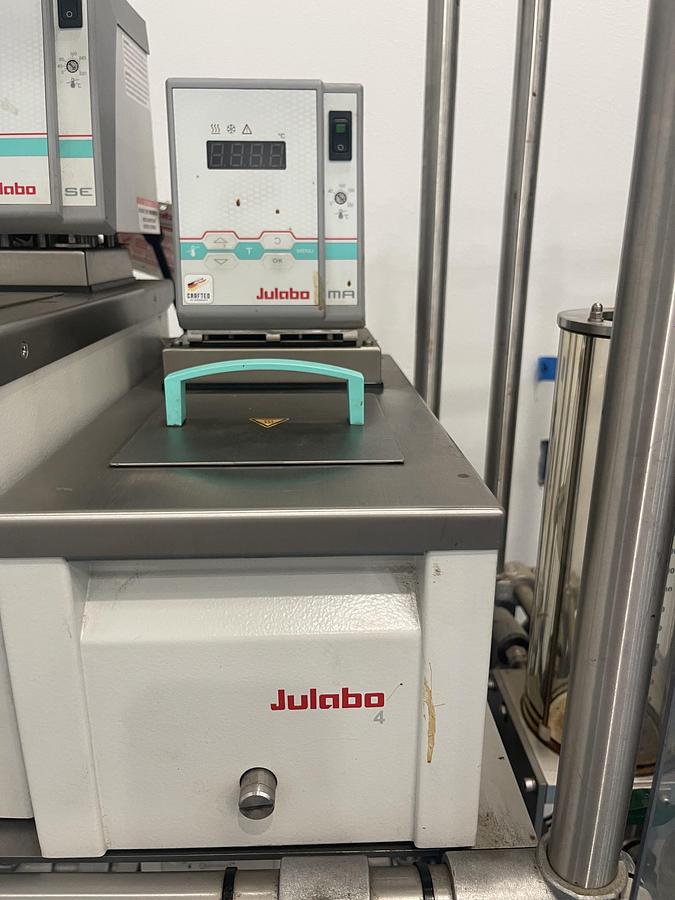

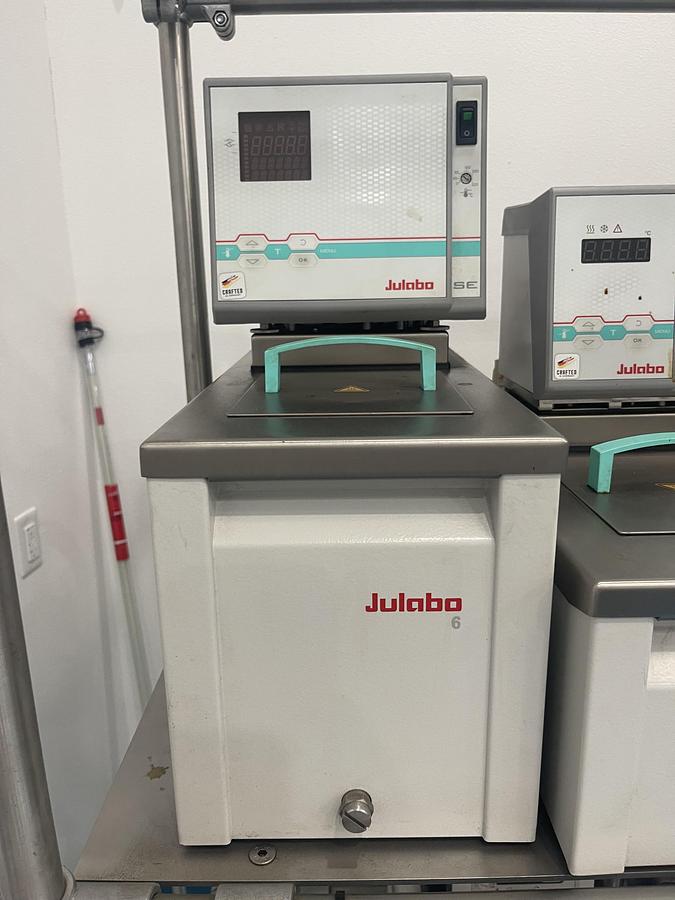

Gently used Chemtech KDL6 with all Julio heaters and chillers. Also comes with roughing pump and brand new rollers.

This unit is was an original UIC German brand, which is now known as Chemtech Services. The two companies merged together to become Chemtech.

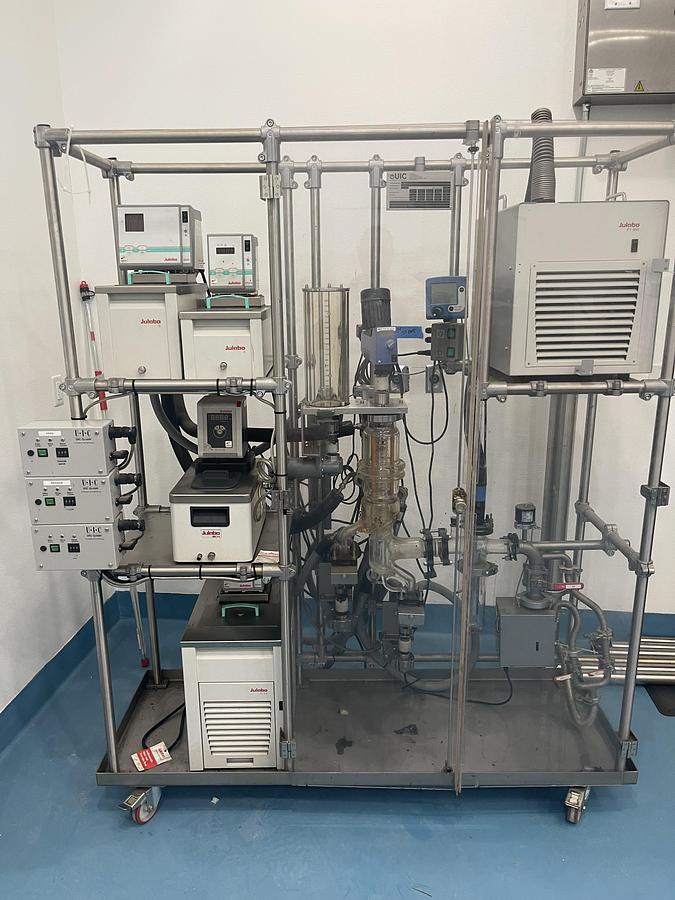

The Chemtech KDL-6 is a compact, single-stage short path distillation unit engineered for precision separation of heat-sensitive compounds at laboratory and pilot-scale levels. Designed for efficiency, control, and purity, it's ideal for small-batch production and research applications.

Key Features:

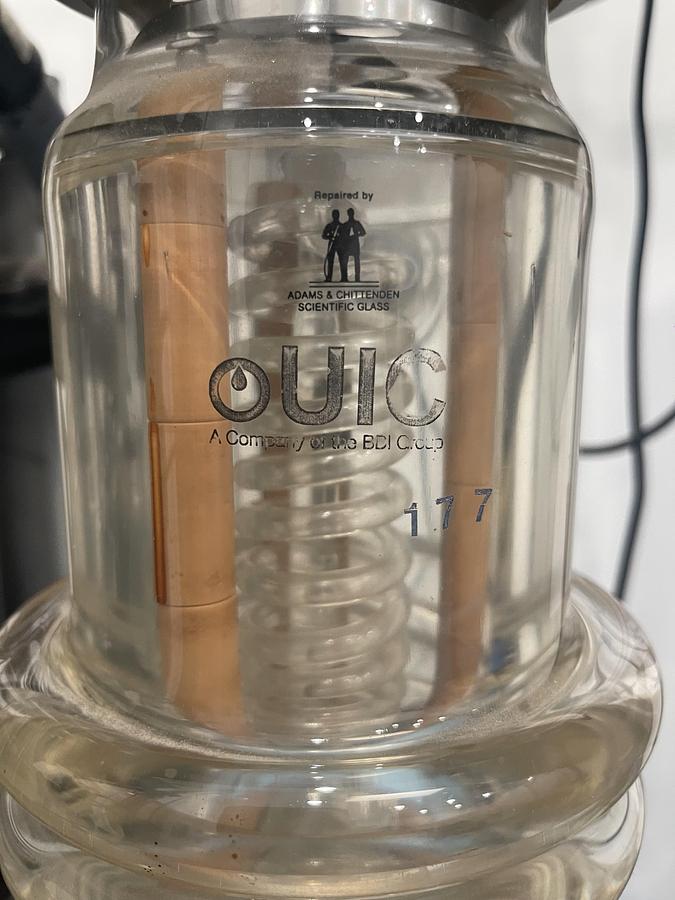

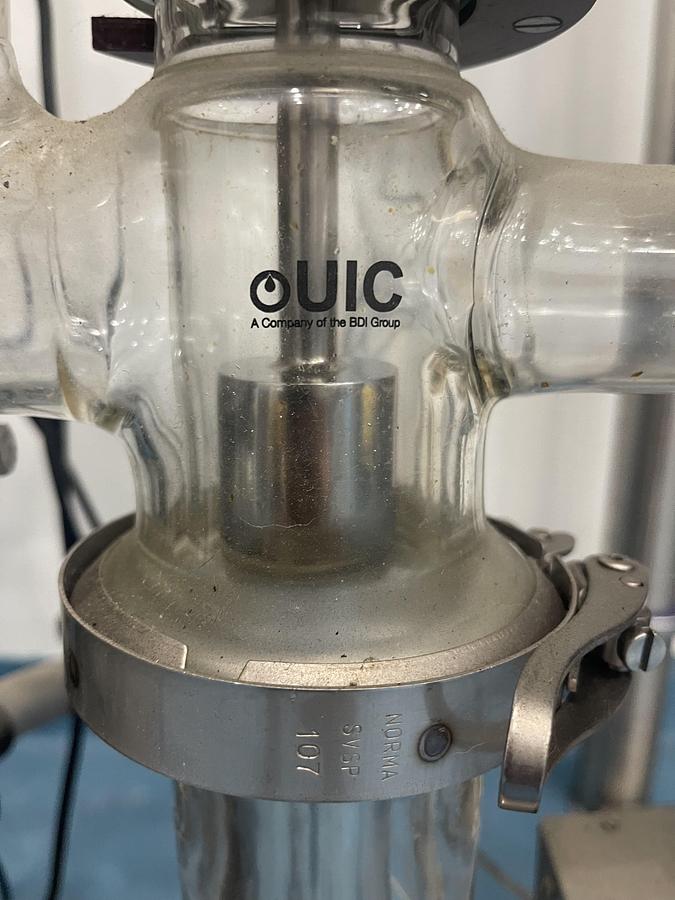

• Evaporator: 0.06 m² borosilicate glass surface area for efficient thermal transfer and gentle evaporation
• Throughput: Processes approximately 1.5 liters per hour, depending on feedstock and conditions
• Feed System: 2L hot oil-heated feed tank with precision gear pump
• Circulators:
• Feed: 2 kW, 20–250°C
• Evaporator: 3 kW, 0–250°C
• Residue: 2 kW, 20–250°C

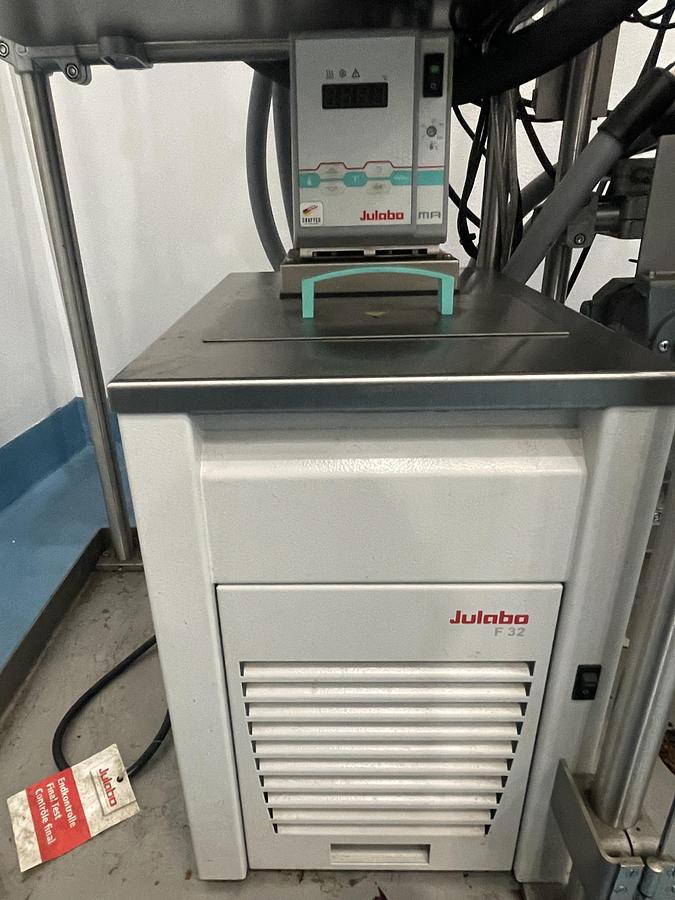

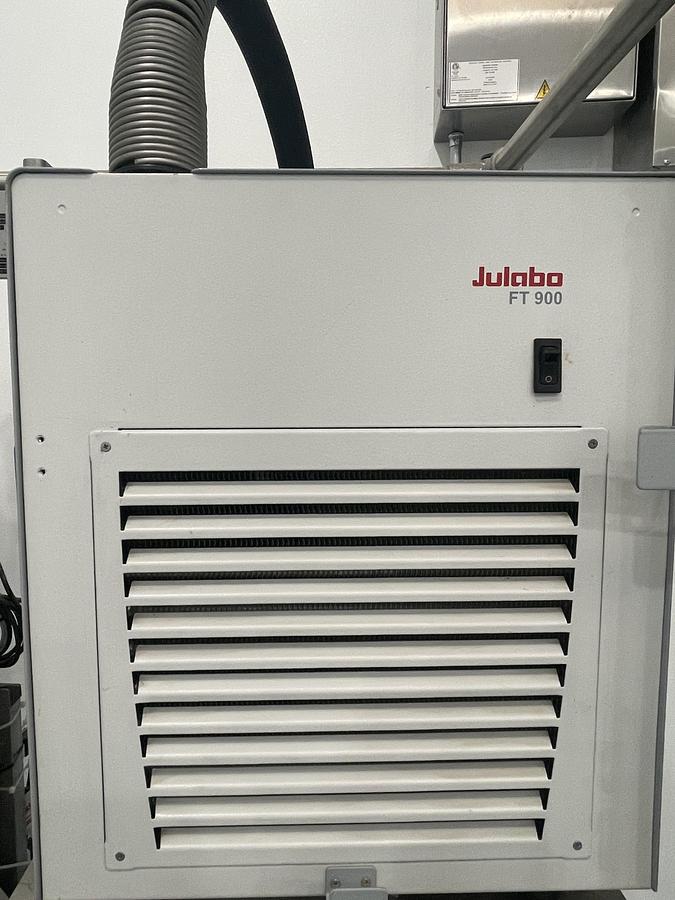

• Condenser/Cold Trap: 2 kW heating & 500W cooling, -50 to 200°C
• Vacuum System: Dual-stage setup with rotary vane backing pump and turbomolecular pump, reaching vacuum levels down to 0.001 Torr
• Collection: 6-position carousel allows for uninterrupted distillate collection under vacuum

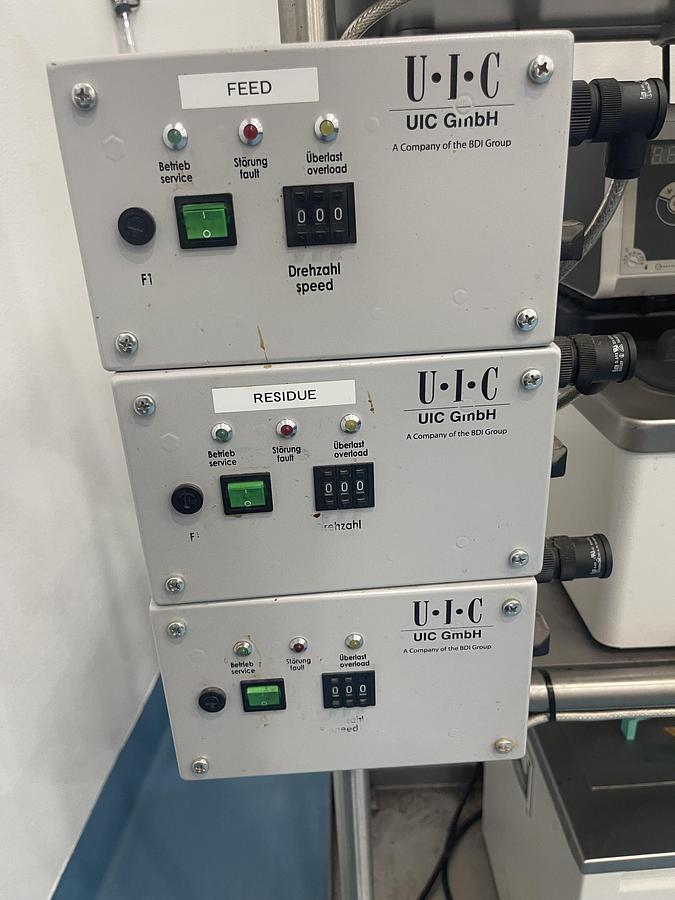

• Controls: UL 508-rated control cabinet with optional PLC for automated control and data logging

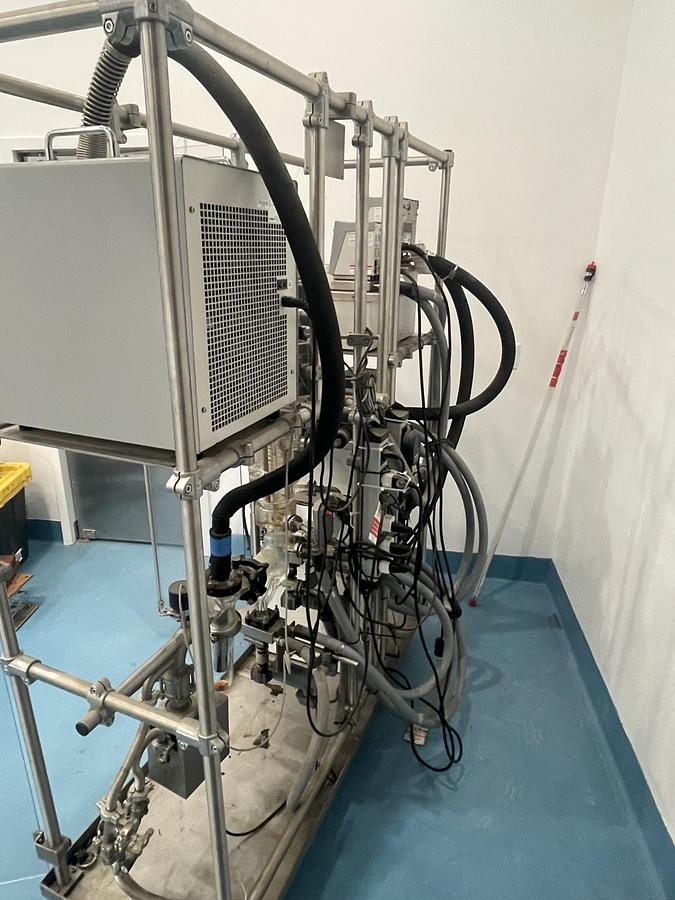

• Frame & Dimensions: 304 stainless steel frame; approx. 75" L x 28" W x 76" H; ~1,500 lbs
• Compliance: PSI-reviewed, GMP documentation available
•


This unit is a go-to for cannabls and botanical oil refinement, pharmaceutical distillation, and high-purity applications that demand accuracy and gentle processing under vacuum.
